18pcs 10W 4-in-1 Waterproof Wall Washer Light: Buyer’s Guide

The 18pcs 10W 4-in-1 waterproof wall washer light is a linear RGBW fixture for washing vertical surfaces with even color. It uses 18 individually addressable 10W LEDs, runs at 200W, and accepts three optional lens angles. This buyer’s guide explains the specifications, the control options, and how to choose the right version for your project, based on the model sold by YC Light.

What Is a Waterproof Wall Washer Light?

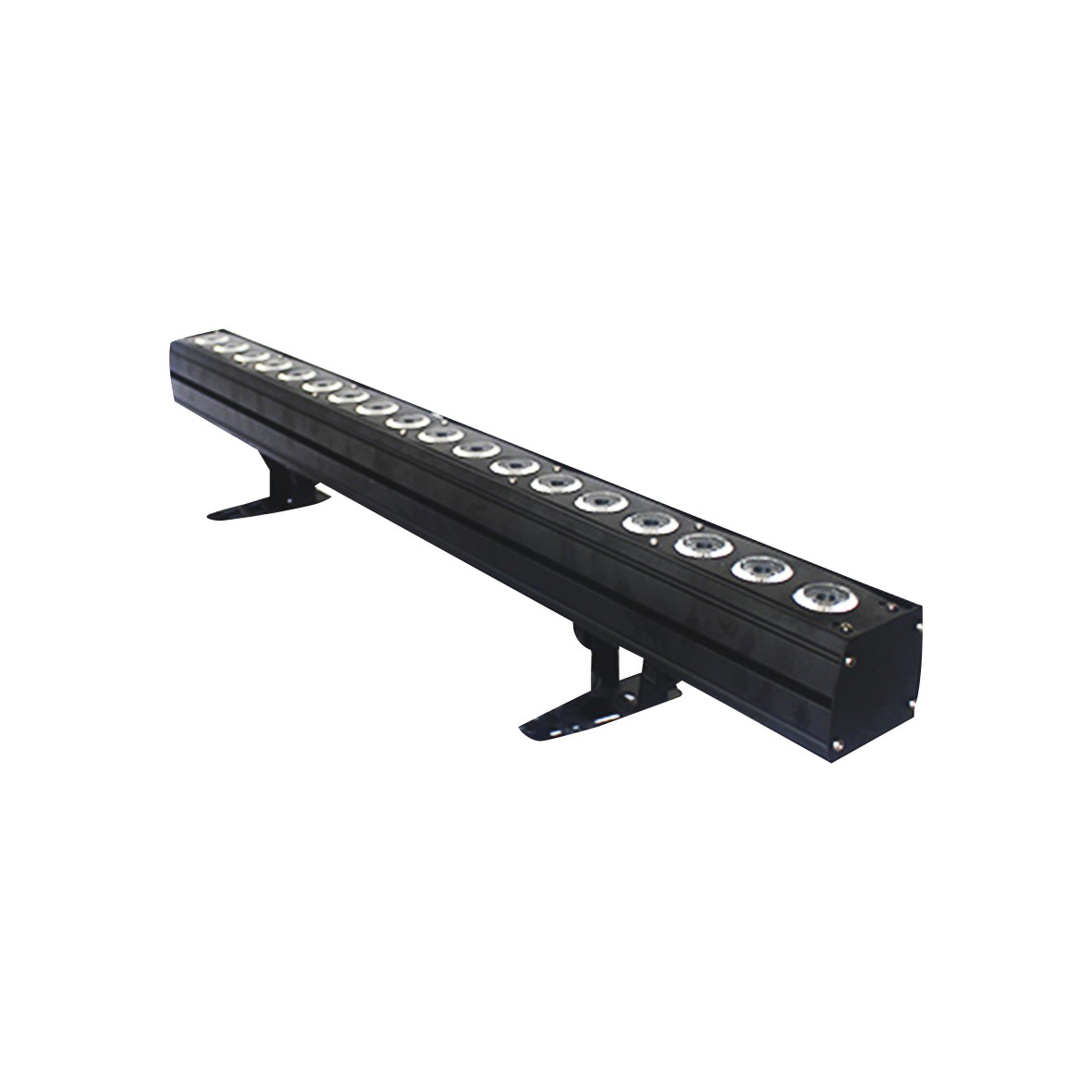

A wall washer is a fixture that spreads light evenly across a surface. Instead of producing a narrow spot, it throws a smooth curtain of light onto a wall, facade, or backdrop. The 18pcs 10W 4IN1 Point Control Waterproof Wall Light from YC Light is designed for that job. Each of its 18 LEDs uses a 4-in-1 red, green, blue, and white chip. The white channel is useful for mixing soft pastel colors and for achieving a more neutral white wash.

The key feature is point control. The fixture can send separate DMX information to each LED position, allowing you to create chases, gradients, color changes, and pixel-level effects along the full length of the fixture. That makes it more flexible than a standard wall washer, which changes color only as a whole unit. Because the fixture is described as waterproof, it can be installed in exterior and damp locations where a normal indoor wall washer would fail.

Key Specifications

The table below lists the main specifications for the 18pcs 10W 4-in-1 waterproof wall washer light. Use them to compare with your existing fixtures and to confirm that the dimensions and control modes fit your installation.

How It Is Used and Where to Install It

This type of waterproof wall washer light is commonly mounted near the base of a wall with the beam aimed upward. It can also be installed horizontally in a recess, behind a parapet, or along an architectural edge. The right mounting height depends on the lens angle you select.

• 15° lens: useful for tall columns, pilasters, and narrow vertical lines. The tighter beam gives a more defined highlight on a specific architectural detail.
• 25° lens: a balanced choice for general facade washing. It covers a moderate surface width while still delivering a consistent wash.
• 40° lens: best for wider surfaces and lower mounting positions. The broader spread reduces scalloping and covers a larger wall area per fixture.

Common venues include building facades, hotel entrances, landscape walls, bridges, fences, stage backdrops, film sets, and outdoor performance spaces. The fixture can also be used indoors where a linear RGBW effect is needed and where a weather-resistant housing is preferred.

For control, the DMX channel options allow different levels of detail. The 72-channel mode gives each of the 18 LEDs its own DMX address, which is what makes point-control effects possible. The 23-channel and 9-channel modes are simpler and easier to work with when you only need a basic color wash or when you are using a small controller. Main/sub and voice-activated modes are available for standalone installations that do not run from a lighting console.

Buying Considerations

Before ordering, clarify what kind of effect you need. If the goal is a smooth, even wash across a large facade, a 40° lens and a lower channel mode may be enough. If the goal is pixel-mapped animation or dynamic chases across the wall, use the 72-channel point-control mode and confirm that your DMX controller can handle the address count.

Check the physical dimensions and mounting conditions. The fixture measures 100 × 9.5 × 17 cm and weighs 6.7 kg, so it is light enough to be handled by one person, but the mounting bracket and wall fixing must be suitable for the surface. For outdoor use, cable entries and connectors must be installed correctly so water does not enter through the wiring path.

Buying from a source factory gives you more options for project-specific needs. YC Light, founded in 2012 in Baiyun District, Guangzhou, manufactures its own line and supports OEM and ODM work including custom colors, DMX protocols, branded packaging, and new designs. The company also provides stage scheme design, effect rendering, bid design, installation and debugging, technical training, rental, and project contracting. Its production line includes SMT PCB lines, optical lens alignment, DMX test equipment, high-temperature aging chambers, and IP waterproof testing.

For larger orders, confirm the quality control workflow before committing. YC Light carries out pre-production sample confirmation and final inspection before every shipment, and offers a one-year warranty. If you need the fixture for a bid, ask the sales team for the relevant product documents. You can compare this model with other fixtures in the outdoor light range, or review the full product list to see what else is available.

Frequently Asked Questions

What does 4-in-1 mean in a waterproof wall washer light?

4-in-1 means each LED contains four color chips: red, green, blue, and white. The white chip helps create cleaner whites and softer mixed colors than a standard RGB fixture. In this model, the RGBW chips are arranged in 18 separate LEDs with point control, which means each LED can receive independent color information.

What is the difference between the 9, 23, and 72 DMX channel modes?

The 72-channel mode provides individual control for each of the 18 LEDs, which is required for pixel effects, chases, and animated gradients. The 23-channel mode reduces the amount of control data and is easier to use for grouped washes or basic designs. The 9-channel mode is the simplest and is suitable for basic color mixing and dimming across the whole fixture. If you are not sure which mode to use, start with the one that matches your controller capacity and effect requirements.

Can this light be used for outdoor stage and event spaces?

Yes. The fixture is designed as a waterproof wall washer light, so it can be installed in outdoor venues where rain or moisture may be present. It is also practical for temporary outdoor stages, event facades, and architectural installations. Indoor stage use is also possible, especially when you need a linear LED fixture that can handle wet or outdoor conditions.

If you have a project in mind and need technical specifications, channel mapping, or a sample for testing, contact the YC Light sales team through the contact page. You can also check the FAQ page for common answers about ordering, shipping, and control setup.
