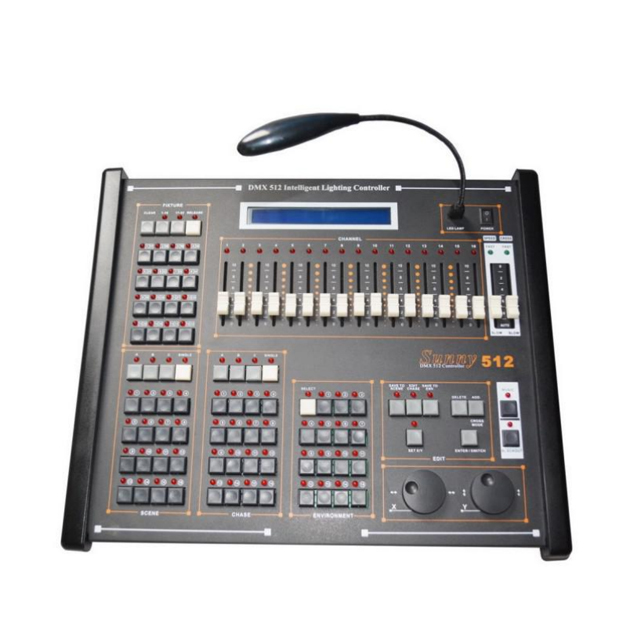

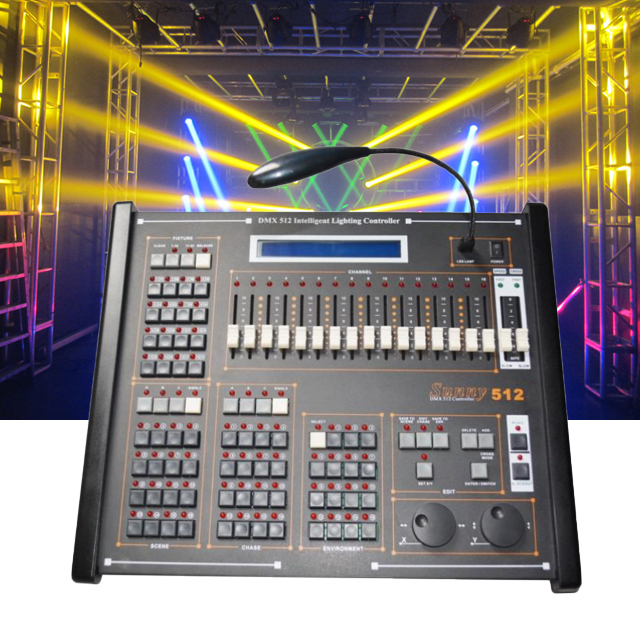

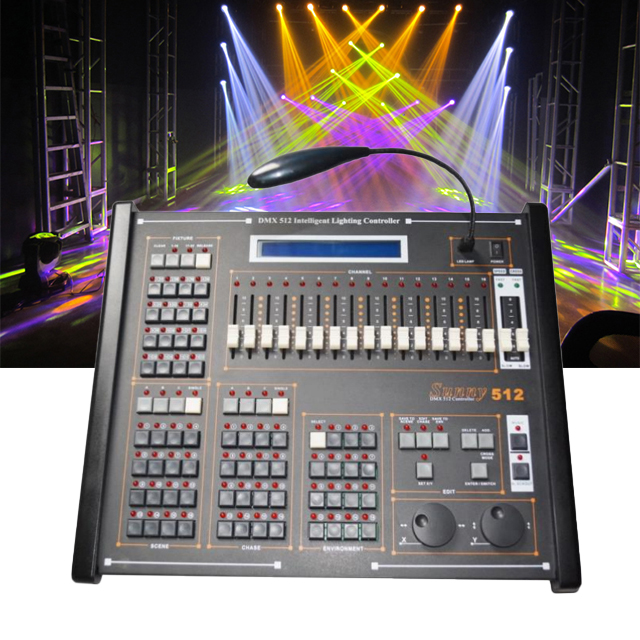

YK-512 Console

Technical feature

DMX512/1990 standard 512 DMX control channels

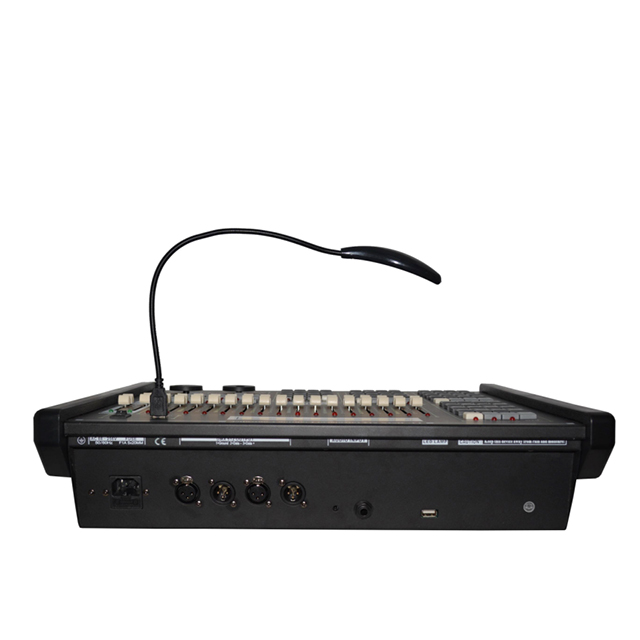

4 output with separate optical isolated

Up to 32 scanners may be connected with a maximum of 16 channels each.

A large back light LCD to display operation parameters

16 channel faders plus 1 speed and 1 cross controlfade

1600 chase steps maximum. 48 chases – up to 99 steps each. Speed and cross time of each step can be set separately. Speed adjustable by music active or manual mode

SPEED fade time range is 0.01s 25.5s and CROSS fade time range is 0s-25.5s and the total time amount of current status will be program step time

48 scenes can be used directly

8 chases and 48 scenes can run at the same time And 32 scanners can be selected together

The X/Y channels of different fixtures can be controlled by PAN/TILT wheel together

16 Bit control for PAN/TILT fine adjustment

15 environment programs to output the combination.which are composed of different scenes, chases and manual output quickly

The music trigger source can be selected between audio line input or internal microphone

Easy to learn and operate

The Data auto saves. (Through the electronicmemory storage and it can be changed freely)

High performance switching power supply, with extremely low power harmonious distortion and wide range of voltage, suit for the requirement of different country smultaneously

LED lamp connector

Power input: AC88 -256V 50/60Hz

Dimension: 498mm x 420mm x 115mm

Net Weight: 6.5kg

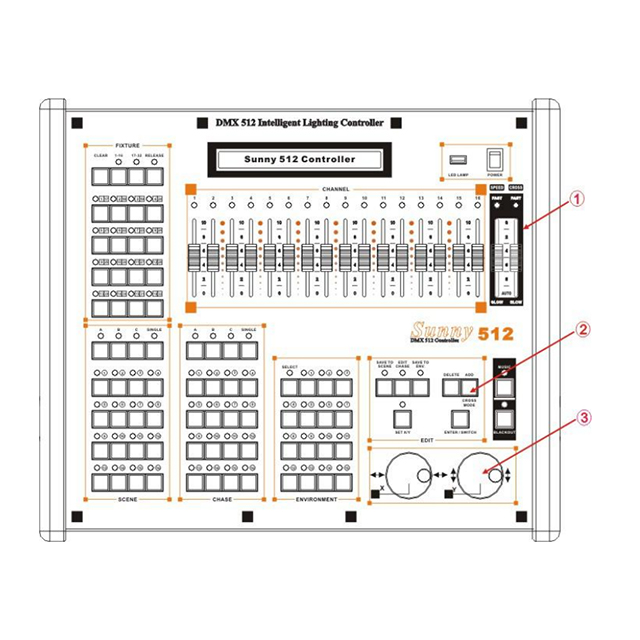

New Function

During program running, the program will run in preset speed when SPEED & CROSS faders at AUTO position otherwise the running speed will be total amount of current SPEED & CROSS faders.

When run Chase and environment program, press CROSS ode button to change CROSS mode between all channel mode or only X’Y mode.

After set PAN/TILT wheel, the faders and PAN/TILT wheel could control same channel yalue together (faders change channel value and PAN/TILT wheel fine adjust value).
