LED700W Frame Light
- Categories:
- Beam Light
Advantage
- High Quality
- Competitive Price
- Good After-sale Service
- Fast Delivery
- One Year Warranty
- Global Transportation
- CE Certification
- Rohs Certification

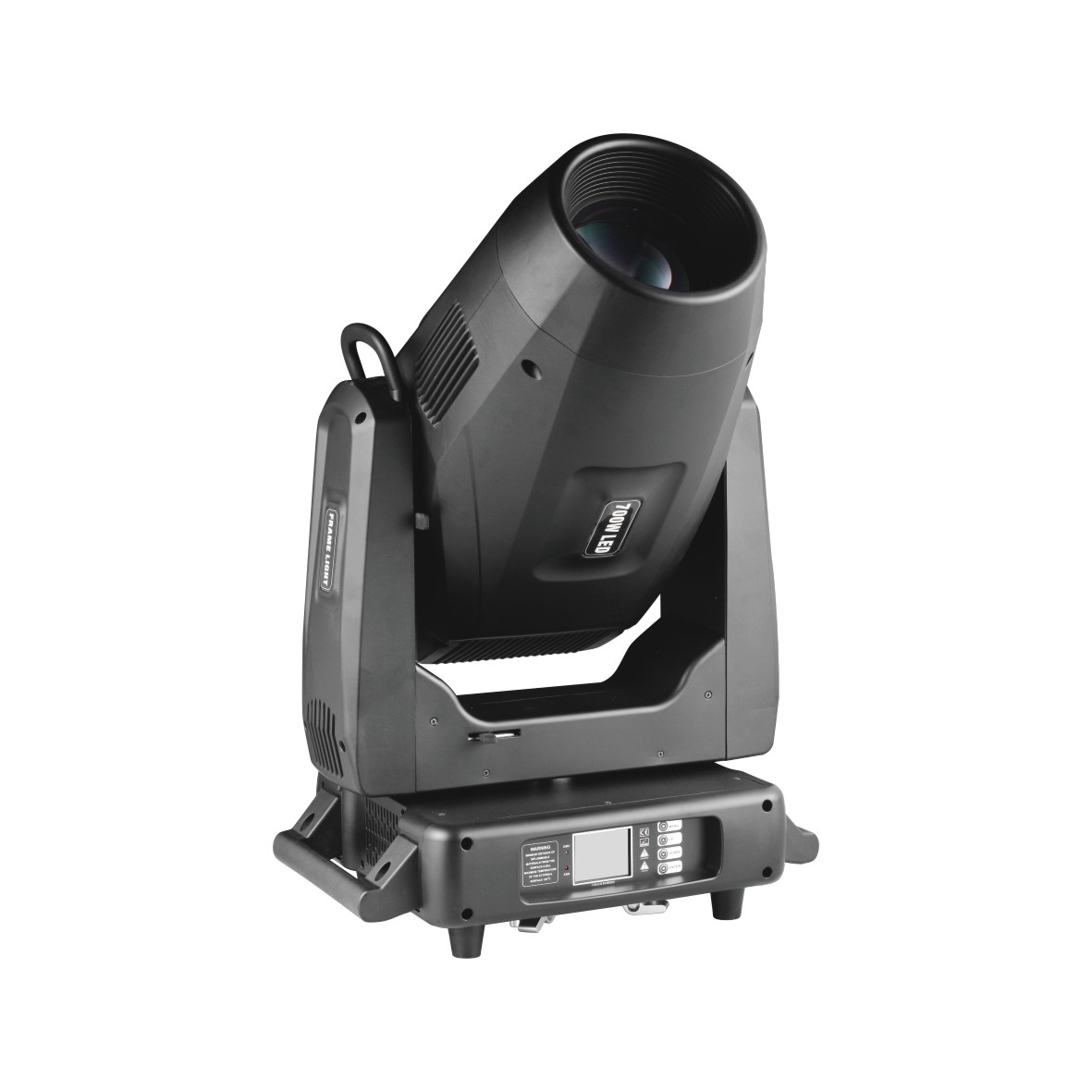

The LED700W Frame Light is a beam light with a 1000W LED module, rated power 1300W, and 20,000-hour LED life. It delivers 24000LM, a 4.5°-50° zoom, and 16-bit pan/tilt scanning for precise positioning. Featuring a 36-channel DMX control and RDM, it offers advanced color and effect options.
Specifications
| Specification | Detail |
|---|---|
| Input voltage | AC100-240V, 50/60Hz |
| Rated power | 1300W |
| Light source | 1000W LED module |
| LED life | 20,000 hours |
| Color temperature | 6800K |
| Color rendering index | standard mode Ra>75, high display mode Ra>90 |
| Luminous flux | 24000LM |
| Power interface | 16A power plug |
| Signal interface | three pin XLR seat |
| Control mode | DMX512, RDM |
| Channel mode | 36 international standard DMX512 channels |
| Display system | 2.5 inch touch LCD display, Chinese and English display, 180 degree rotation |
| Fixed colors | 7 colors+white light |
| Color mixing system | independent cmY color mixing system |
| Color temperature adjustment | independent CTO2800-5800 K linear adjustment |
| Prism plate | rotate 3 prisms+6 linear prism |
| Effect plate | dazzle to simulate dynamic effects such as moving flames and flowing water |
| Fixed pattern | 8 plug-in fixed pattern pieces+white circle |
| Rotating pattern | 6 pattern pieces (pluggable) with outer diameter of 27.9mm, effective diameter of 16.5mm and thickness of 1.1mm |
| Cutting system | 4 independent cutting pieces, each piece can turn off the light independently, and can rotate 90 ° |
| Atomization system | 0-100% linear atomization |
| Aperture system | 5% – 100% smooth adjustment |
| Zoom system | 4.5 ° – 50 ° linear focus |
| Dimming system | 0-100% linear adjustment |
| Stroboscopic system | the maximum frequency can reach 25Hz, and random stroboscopic and pulse stroboscopic horizontal scanning: 540 ° (16 bit precision scanning) vertical scanning: 270 ° (16 bit precision scanning) |
| Protection grade | Ip20 |
| Working environment | 0-45 ℃ |
| Product size | 510L * 345W * 800Hmm |
| Net weight of product | 40kgs |
| Product gross weight | 43kgs |
| Product appearance | flame retardan |
Applications

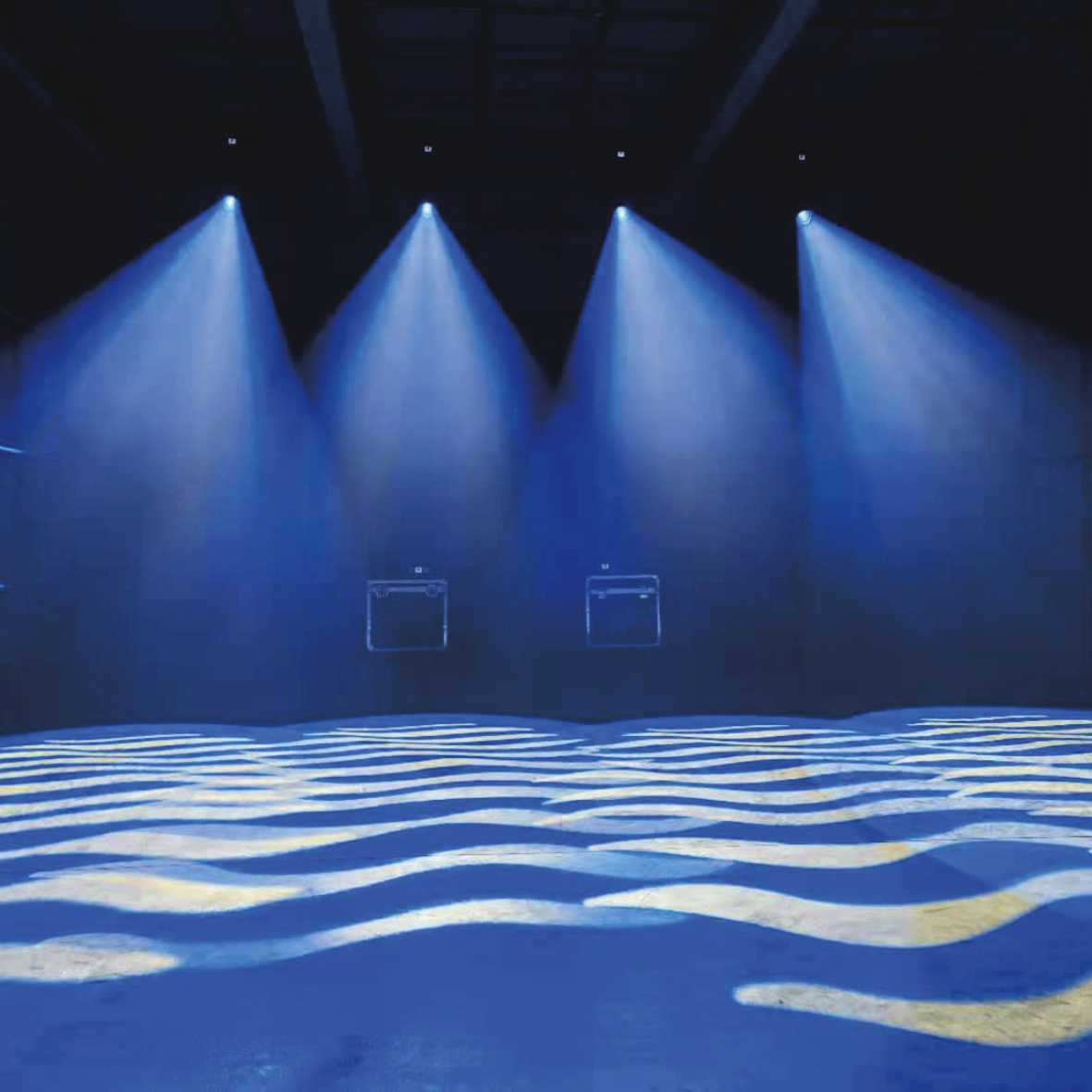

This fixture suits concert stages, theatres, and large venues requiring long-throw aerial beam effects. Its 4.5°-50° linear zoom and 540°/270° scanning create dynamic beams. The independent CMY color mixing, CTO adjustment, and rotating gobos add variety. Four framing shutters and a cutting system allow precise beam shaping for stage close-ups. With stroboscopic effects up to 25Hz, it enhances any performance.
Why Buy from YC Light
- Source factory in Guangzhou since 2012 — 13 categories, 153+ models
- CE & RoHS certified; pre-production sample confirmation and final inspection before shipment
- OEM/ODM customization: colors, DMX protocols, branded packaging
- One-year warranty with responsive after-sales support
Who are we?
We are based in Guangdong, China, start from 2012,sell to Domestic Market(32.99%), Southeast Asia(22.67%), North America(18.80%), South Asia(13.94%), South America(6.30%), Western Europe(4.64%), Africa(0.66%). There are total about 11-50 people in our office.
How can we guarantee quality?
Always a pre-production sample before mass production; Always final Inspection before shipment.
What can you buy from us?
Beam light, moving head, led par light, effect light, laser light.
Why should you buy from us not from other suppliers?
YICHENG LIGHT INDUSRTY LIMITED is a professional manufacturer of stage lighting and audio in China. Our products are suitable for various entertainment and recreation place, such as secondary stage, theatre, TV showroom, multimedia hall, show square.
What services can we provide?
- Accepted Delivery Terms: FOB, EXW；
- Accepted Payment Currency: USD, EUR;
- Accepted Payment Type: T/T, L/C, PayPal, Western Union, Cash;
- Language Spoken: English, Chinese, Spanish.
