380BEAM +Aperture
- Categories:
- Beam Light
Advantage
- High Quality
- Competitive Price
- Good After-sale Service
- Fast Delivery
- One Year Warranty
- Global Transportation
- CE Certification
- Rohs Certification

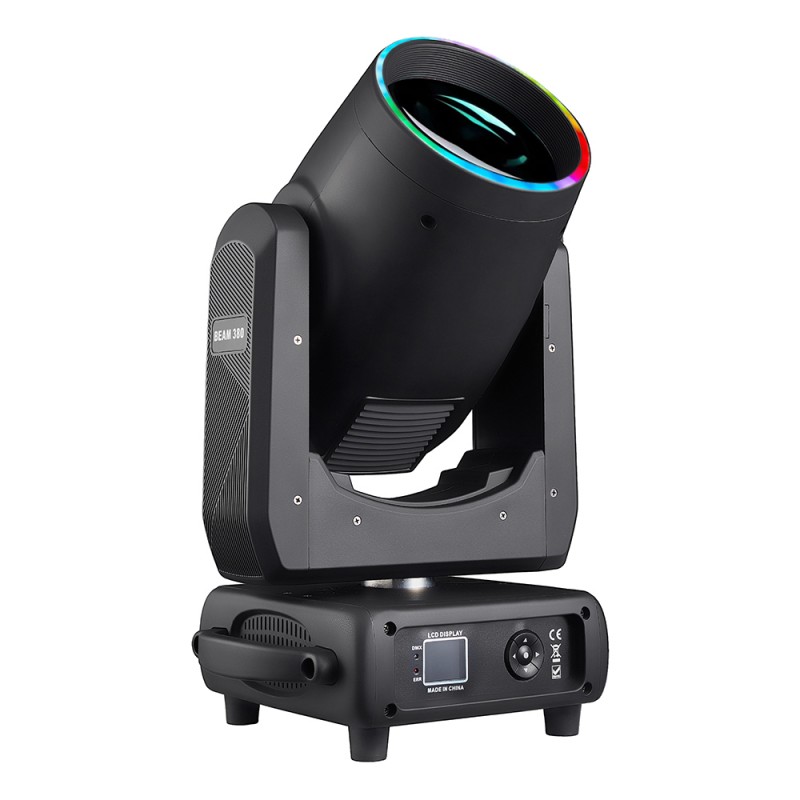

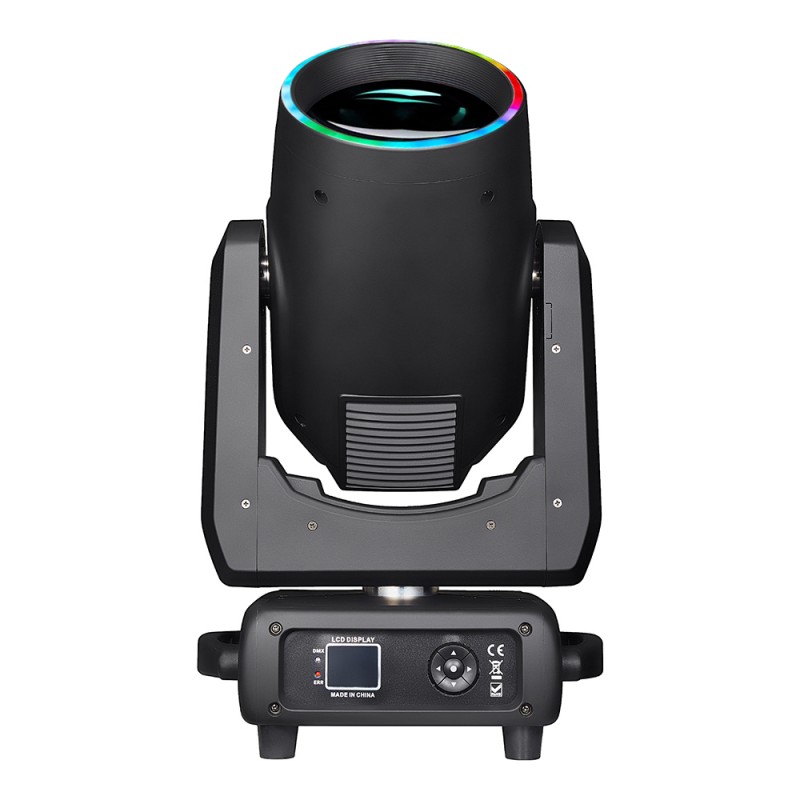

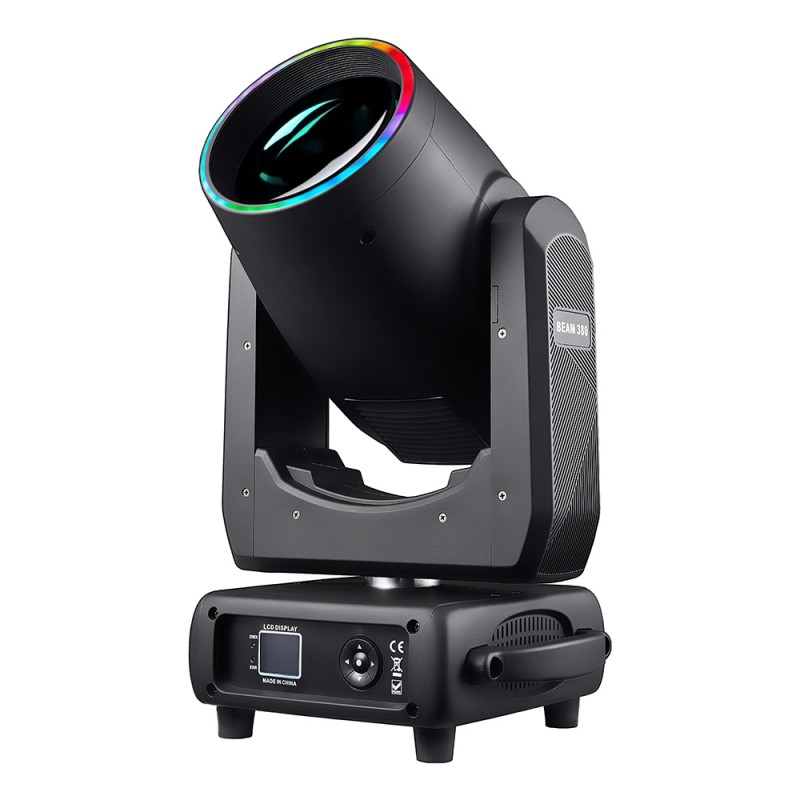

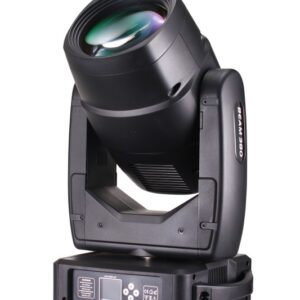

The 380BEAM +Aperture is a 600W beam light powered by a Phoenix Bubble 380W lamp. It features 16 DMX channels, electronic inductive ballast, and control via DMX512, WMDMX, or self-propelled modes. With 48 honeycomb prisms and dual independently rotating prisms, it delivers precise aerial effects. Rated IP20, it measures 300 x 240 x 530mm and weighs 12kg.
Specifications
| Specification | Detail |
|---|---|
| Power supply | AC100-240V, 50/60Hz |
| Total power | 600W |
| Bulb model | Phoenix Bubble 380W |
| Ballast | Electronic Inductive Ballast |
| Control mode | DMX512/WMDMX/self-propelled |
| Channel | 16 channels |
| Color palette | A color palette, each consisting of 14 color tiles+white, 6 colorful tiles, rainbow effect |
| Prism | 48 honeycomb prisms, 12 prisms, double prisms can be stacked and rotate independently in both directions, with adjustable rotation speed. |
| Focusing | Linear focusing, from near to far. Equipped with atomization function and adjustable atomization speed. |
| IP protection level | IP20 |

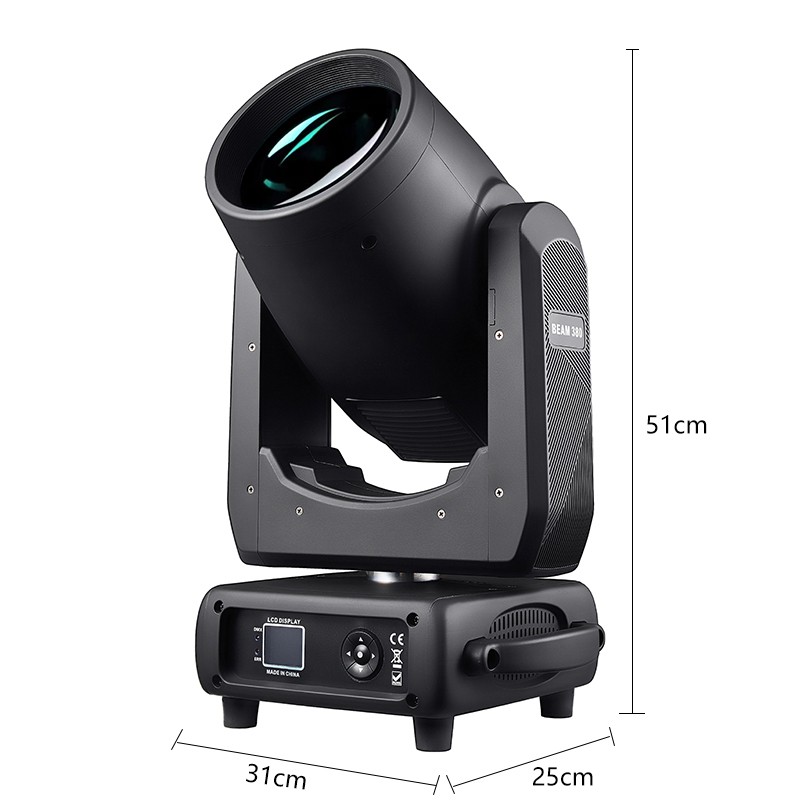

| Size | 300 x 240 x 530mm |
| Net weight | 12Kg |
| Packaging size | 56 * 38 * 44cm |
| Gross weight | 15Kg |
Additional Details
380W beam light+Aperture
The luminous flux is 7950lm, and the color temperature can reach 8500K
Beautiful dot matrix display with four light touch switches, capable of reversing 180 ° display
Adjustable rotation speed, bidirectional flowing effect and rainbow effect. Pattern disk: Fixed pattern disk,
10 fixed patterns+4 glass images (14 pattern effects+white light)
0-100% mechanical dimming, supporting mechanical strobe and adjustable strobe effects, supporting strobe macro function, mechanical strobe is 1-12 F.P.S.
A color palette, each consisting of 14 color patches+white, with adjustable rotation speed, bidirectional flowing effect and rainbow effect
Adopting a photoelectric reset system, it can automatically retrieve the reset in case of accidental misoperation
Horizontal 540 °, 8Bit/16Bit fine tuned
Vertical 270 °, 8Bit/16Bit fine tuned
Equipped with horizontal and vertical fine automatic error correction functions.
Overheat protection
AC/DC switch power supply.
LCD display screen.
Applications
Designed for concert stages, theatres, and large venues requiring long-throw aerial beam effects. The linear focusing system and adjustable atomization create sharp or soft beams, while stacked double prisms produce complex, rotating patterns. Its 14-color plus white palette and rainbow effect enhance dynamic productions, making it suitable for mid-to-large stages where powerful, versatile beam projection is essential.
